AC220V 50Hz Weight In Motion System IP68 Overweight Identifying

Ask Lasest Price
Brand Name :	Hengliang
Model Number :	ZQS-40-SY
Certification :	ISO
Price :	USD 20000-35000/SET
Payment Terms :	T/T
Supply Ability :	30 SET/Month
Delivery Time :	5~7days

Add to Cart

Product Details
Company Profile

AC220V 50Hz Weight In Motion System IP68 Overweight Identifying

Max Single Axle 60T High Speed WIM System & Load Cell System

Product Function

When vehicle enters the dynamic weighing region, it has also entered the license plate recognition place, the system will recognize vehicle license plate, and the result could be uploaded to the software system of detection station. Detection station software system matching the uploaded vehicle license plate data with vehicle weighing data, and according to the requirements of overloaded vehicles discriminant standard set up transfinite limit, automatic identifying whether the vehicle is overweight or overspending. If vehicles overrun, according to the user’s settings, can provide prompt information to external display device. Every car will form a complete car information, including vehicle speed, axle load, the number of shaft, wheelbase, vehicle weight, license plate, the speed of the car, over time, whether overrun, and upload to the sub-center database, convenient for searching, sharing and analysis car record.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

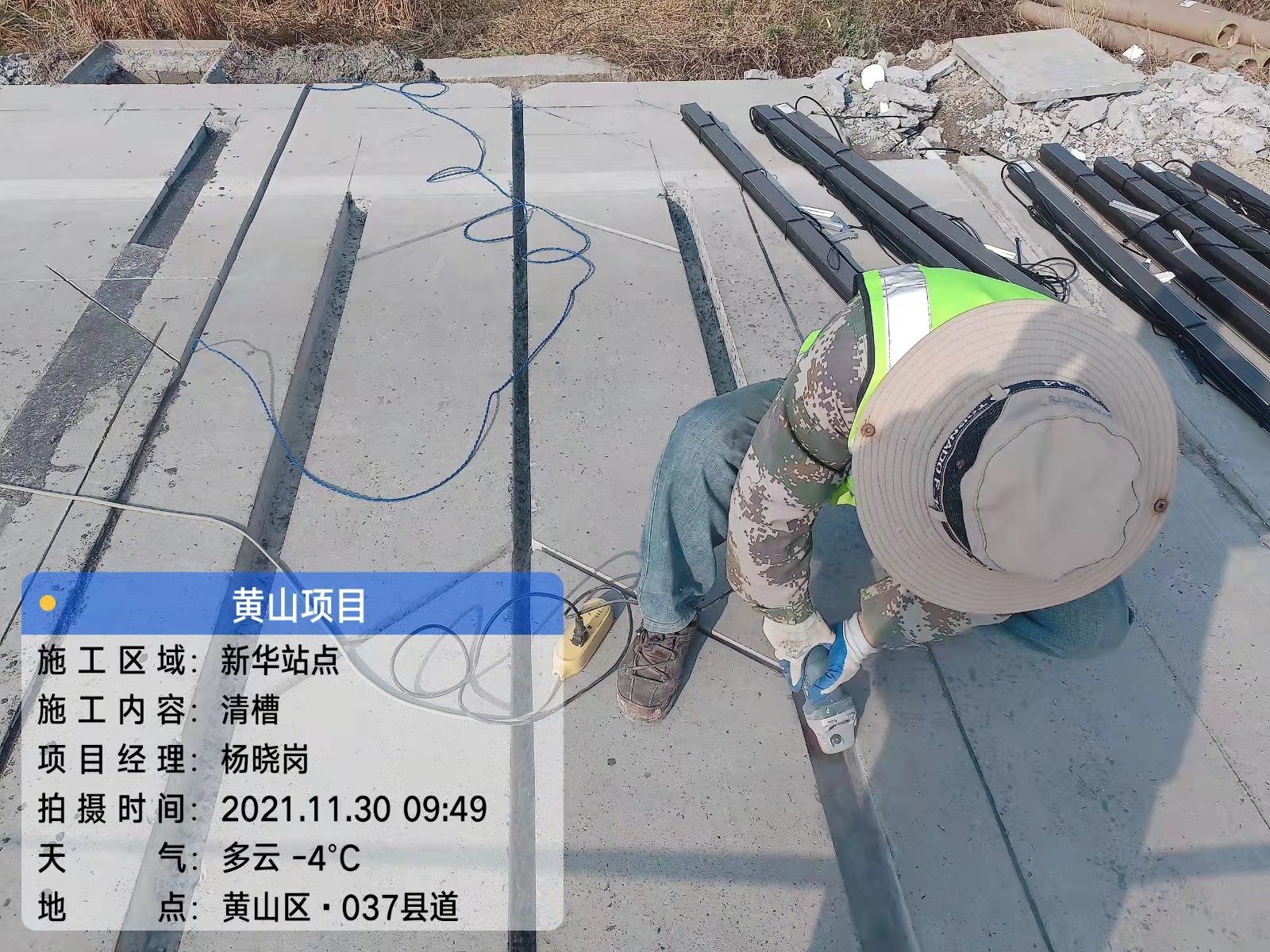

Project Case
