Unattended Weigh In Motion Systems Wim For Toll Station Highway Vehicle

Ask Lasest Price
Brand Name :	Hengliang
Model Number :	ZQS-40-SY
Certification :	ISO
Price :	USD 20000-35000/SET
Payment Terms :	T/T
Supply Ability :	30 SET/Month
Delivery Time :	5~7days

Add to Cart

Product Details
Company Profile

Unattended Weigh In Motion Systems Wim For Toll Station Highway Vehicle

Unattended Dynamic Axle Load Weighing System For Highway Vehicle

Product Function

The unattended high-speed dynamic weighing system governs the overload detection mode, detects the weight of cargo vehicles running normally on the carriageway, dynamically monitors whether the vehicle is overloaded according to the load limit set by the system, records and outputs the overload value and relevant data, and at the same time, a variable information board is configured on the f pole in front of the vehicle, Automatically identify the vehicle license plate number and enter it into the management system, and prompt the overload vehicle alarm signal. Cooperate with the traffic signs on the roadside to guide illegal vehicles into the exit channel or static fine inspection management station, so as to effectively eliminate the entry of out of gauge vehicles. Provide strong technical support for the implementation of dynamic comprehensive overload management.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

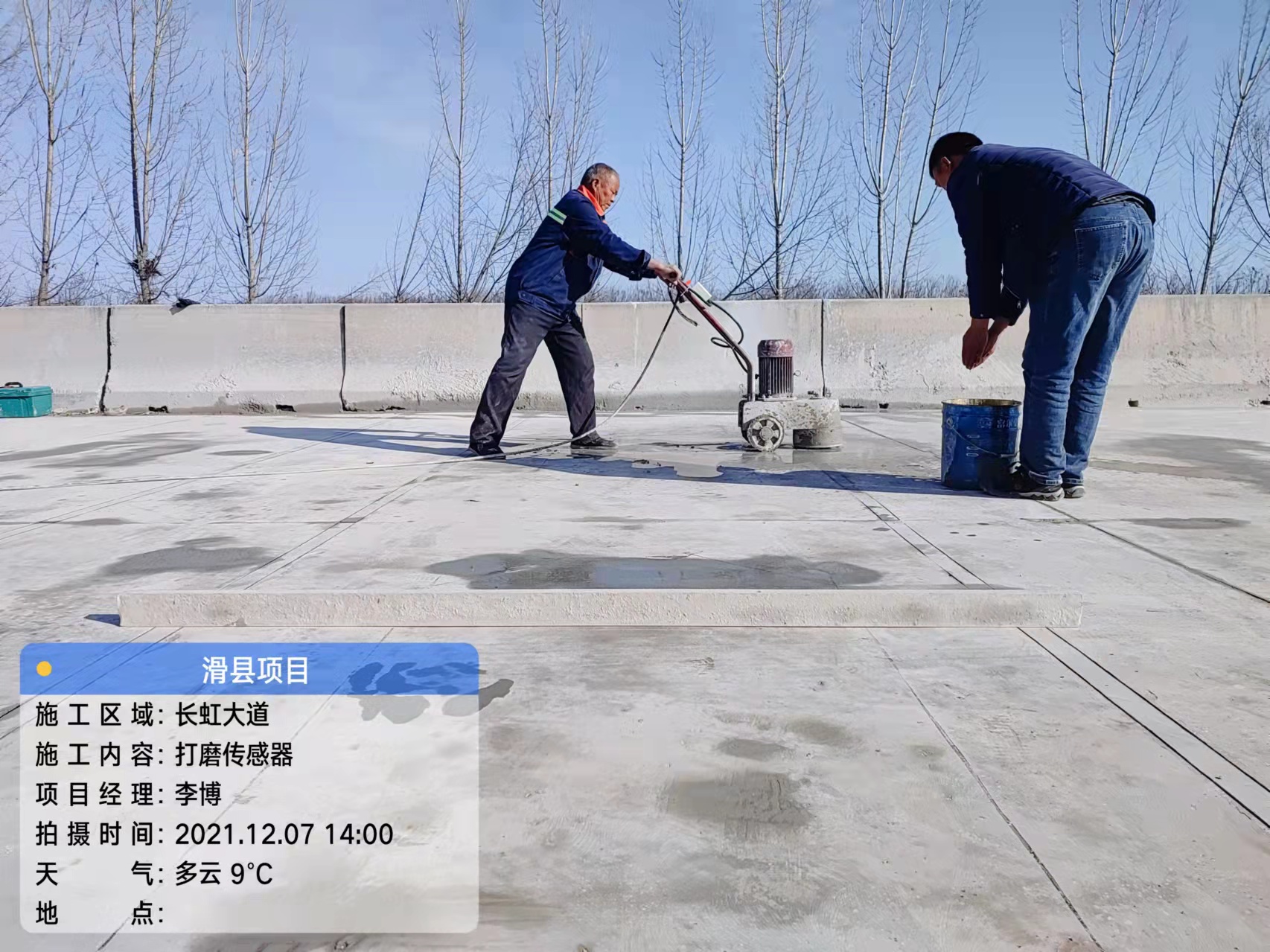

Project Case
