    Pre Inspection Quartz WIM System In Motion Axle Scale Hengliang

    Ask Lasest Price
    Brand Name : Hengliang
    Model Number : ZQS-40-SY
    Certification : ISO
    Price : USD 20000-35000/SET
    Payment Terms : T/T
    Supply Ability : 30 SET/Month
    Delivery Time : 5~7days
    • Product Details
    • Company Profile

    Pre Inspection Quartz WIM System In Motion Axle Scale Hengliang

    High Speed Pre Inspection Weighing System For Quartz WIM Scales

    Product Function

    The feature of the detection system is that it can quickly detect overweight vehicles without affecting the normal driving of vehicles on the main line, and guide the overloaded vehicles to enter the overload control station for further review and treatment through supporting road markings and signs, without affecting the normal traffic.​

    Product Parameters

    Weighing accuracy90%~97%
    Single axle load40Ton
    Max Load60Ton
    Speed0.5~105km/h;
    Speed error≤±1km/h
    Wheelbase error≤±100mm
    Working voltageAC 220V 50Hz
    Output informationSpeed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
    Maximum number of lanes8 lanes
    Data storageIt can store up to 10000 pieces of vehicle information data
    data interfaceRJ485
    work environment-45℃~80℃,0~95%
    Confidence≥95%

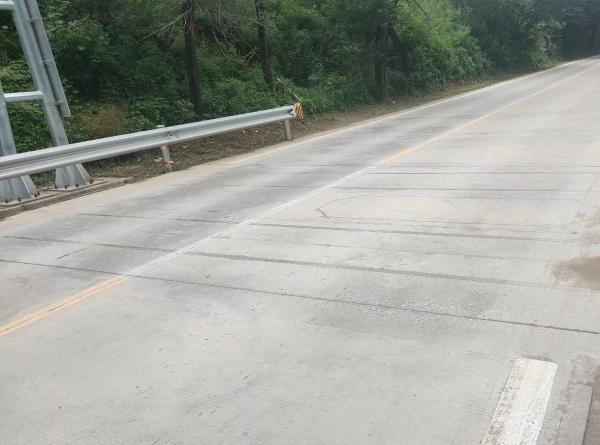

    Project Case

    Quality Pre Inspection Quartz WIM System In Motion Axle Scale Hengliang for sale
