    AC220V 50Hz Wim Weigh In Motion For 0.5-105km/H Vehicle High Precision

    High Precision Dynamic Weighing System For 0.5-105km/H Vehicle

    Product Function

    Under the condition that the system does not affect the normal driving of vehicles, the overloaded vehicles are identified, which not only ensures the normal traffic flow, but also eliminates the overloaded vehicles and protects the safety of roads and driving.

    Main components of the system:

    1. High speed vehicle dynamic weighing detection system

    2. High definition automatic license plate recognition system

    3. Led illegal vehicle information release system

    4. Audible and visual start emergency signal system of illegal vehicles

    5. Anti escape system

    6. Power supply, data and video transmission system

    7. Customer management end and data management system (data server)


    Product Parameters

    Weighing accuracy90%~97%
    Single axle load40Ton
    Max Load60Ton
    Speed0.5~105km/h;
    Speed error≤±1km/h
    Wheelbase error≤±100mm
    Working voltageAC 220V 50Hz
    Output informationSpeed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
    Maximum number of lanes8 lanes
    Data storageIt can store up to 10000 pieces of vehicle information data
    data interfaceRJ485
    work environment-45℃~80℃,0~95%
    Confidence≥95%

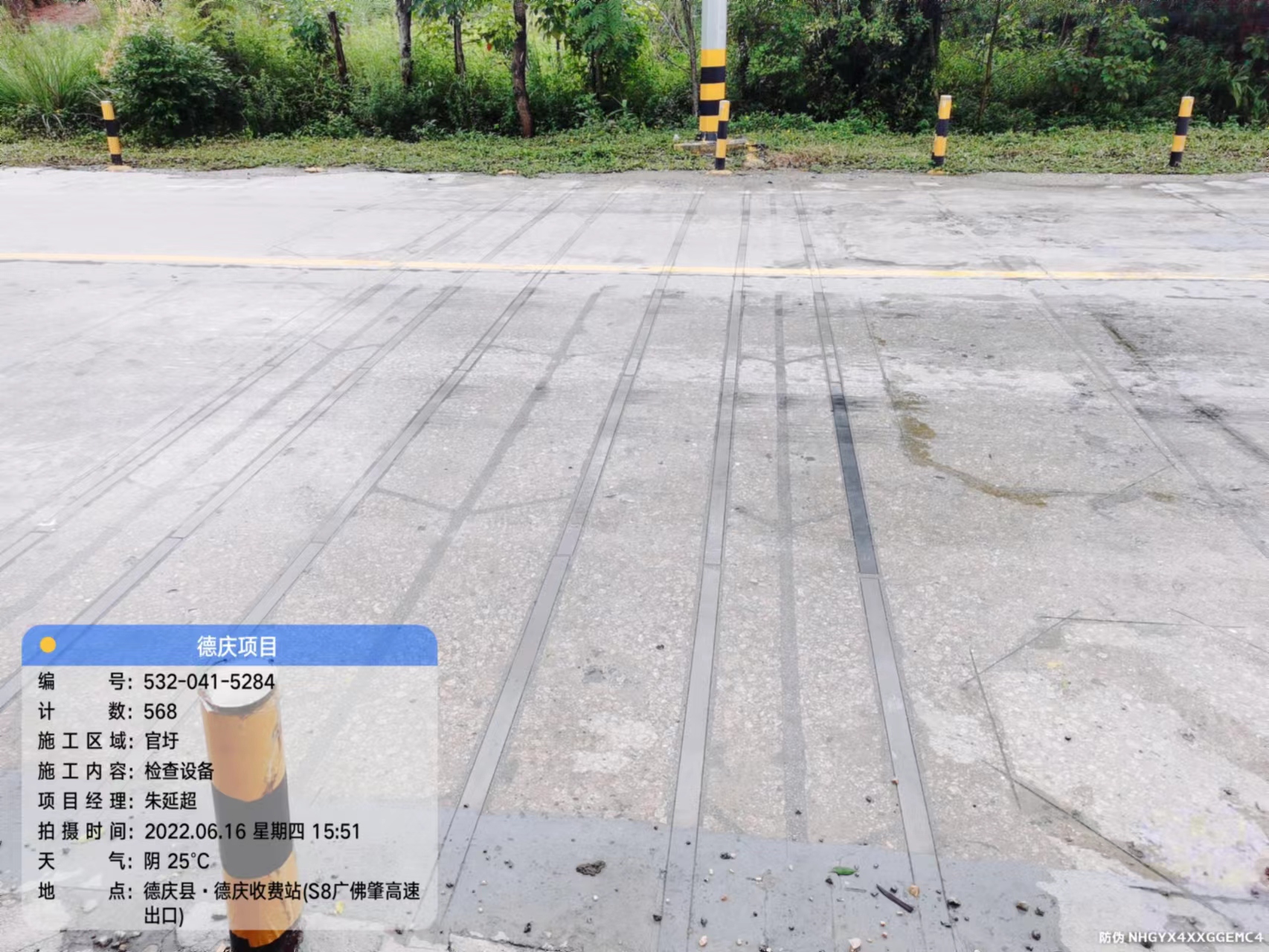

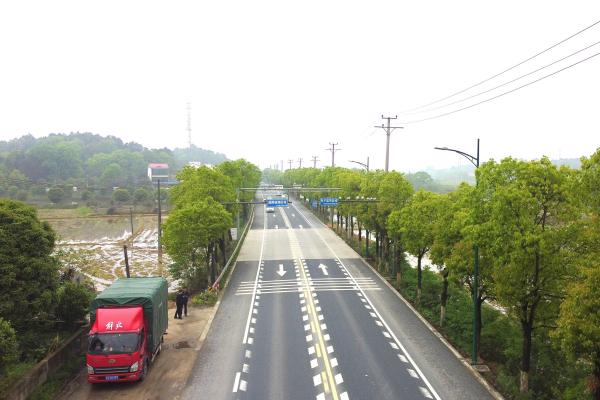

    Project Case

    ​​
