ISO Highway Wim Low Speed Weigh In Motion 0.5-40km/H overload management

Ask Lasest Price
Brand Name :	Hengliang
Model Number :	ZQS-40-SY
Certification :	ISO
Price :	USD 20000-35000/SET
Payment Terms :	T/T
Supply Ability :	30 SET/Month
Delivery Time :	5~7days

Add to Cart

Product Details
Company Profile

ISO Highway Wim Low Speed Weigh In Motion 0.5-40km/H overload management

High Performance Axle Scale Low Speed Wim System Using In Highway

Product Description

Low Speed WIM System refers to a group of installed sensors and electronic instruments containing software, used for measuring dynamic tire force and the vehicle through time and provide the calculation of wheel weight, axle load, total weight (such as speed, wheelbase), by measuring and analyzing the dynamic tire force calculating the total and partial weight of a moving vehicle; mainly applied in the expressway and other highways, ports and logistics distribution center.

Product Parameters

Weighing error	5%~10%
Single axle load	40Ton
Max Single Load	60Ton
Speed rate	0.5~40km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Power	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

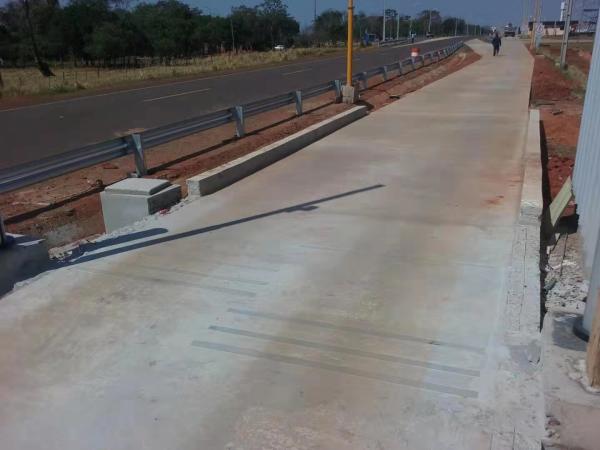

Project Cases
