40T Dynamic Weighing Low Speed Weigh In Motion Wim Hengliang

Ask Lasest Price
Brand Name :	Hengliang
Model Number :	ZQS-40-SY
Certification :	ISO
Price :	USD 20000-35000/SET
Payment Terms :	T/T
Supply Ability :	30 SET/Month
Delivery Time :	5~7days

Add to Cart

Product Details
Company Profile

40T Dynamic Weighing Low Speed Weigh In Motion Wim Hengliang

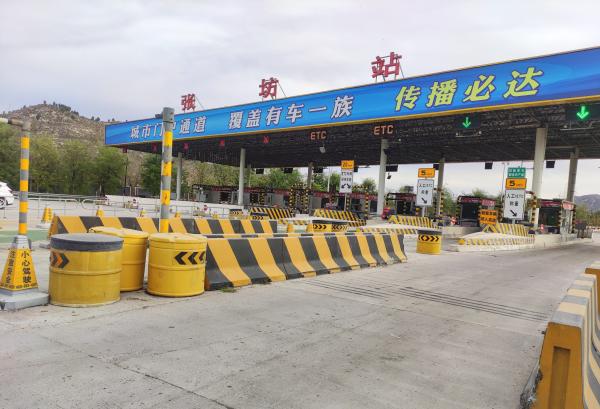

Low Speed Dynamic Weighing System Of Toll Station & Truck Scales

Product Function

vehicle passing the weighing area, the axle running on the quartz sensor and track detecting sensor paved in the lane, the signal generated by the quartz sensor collected, analyzed and processed by data collector, and sent to the weighing meter; the signal from the track detecting sensor , collected, processed and analyzed by the weighing meter, to acquire the driving track of vehicle.

Product Parameters

Weighing error	5%~10%
Single axle load	40Ton
Max Single Load	60Ton
Speed rate	0.5~40km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Power	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

Project Cases
