Hengliang Dynamic Weighing WIM System With 40000KG Truck Axle Scales

Ask Lasest Price
Brand Name :	Hengliang
Model Number :	ZQS-40-SY
Certification :	ISO
Price :	USD 20000-35000/SET
Payment Terms :	T/T
Supply Ability :	30 SET/Month
Delivery Time :	5~7days

Add to Cart

Product Details
Company Profile

Hengliang Dynamic Weighing WIM System With 40000KG Truck Axle Scales

Piezoelectric Quartz Dynamic Weighing WIM System & 40000KG Axle Scales

Product Function

The high-speed vehicle dynamic weighing system can focus the overload treatment on the truly overloaded transporters, allow the vehicles with normal load to avoid driving into the weighing station for forced vehicle weighing, and only allow a small number of trucks pre inspected as overweight to enter the vehicle weighing area; While controlling the overload, it not only improves the working capacity and weighing accuracy of the weighing station, but also avoids the obstruction to the traffic. Improve road safety and reduce road damage by reducing overloaded vehicles.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

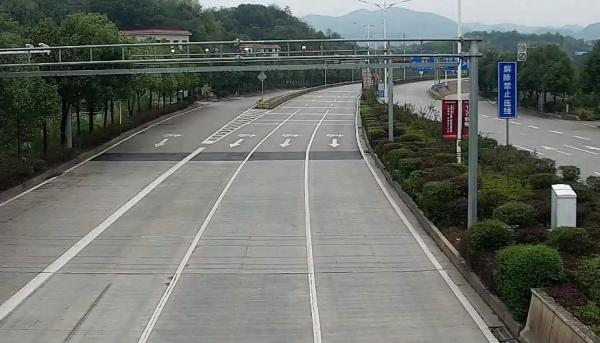

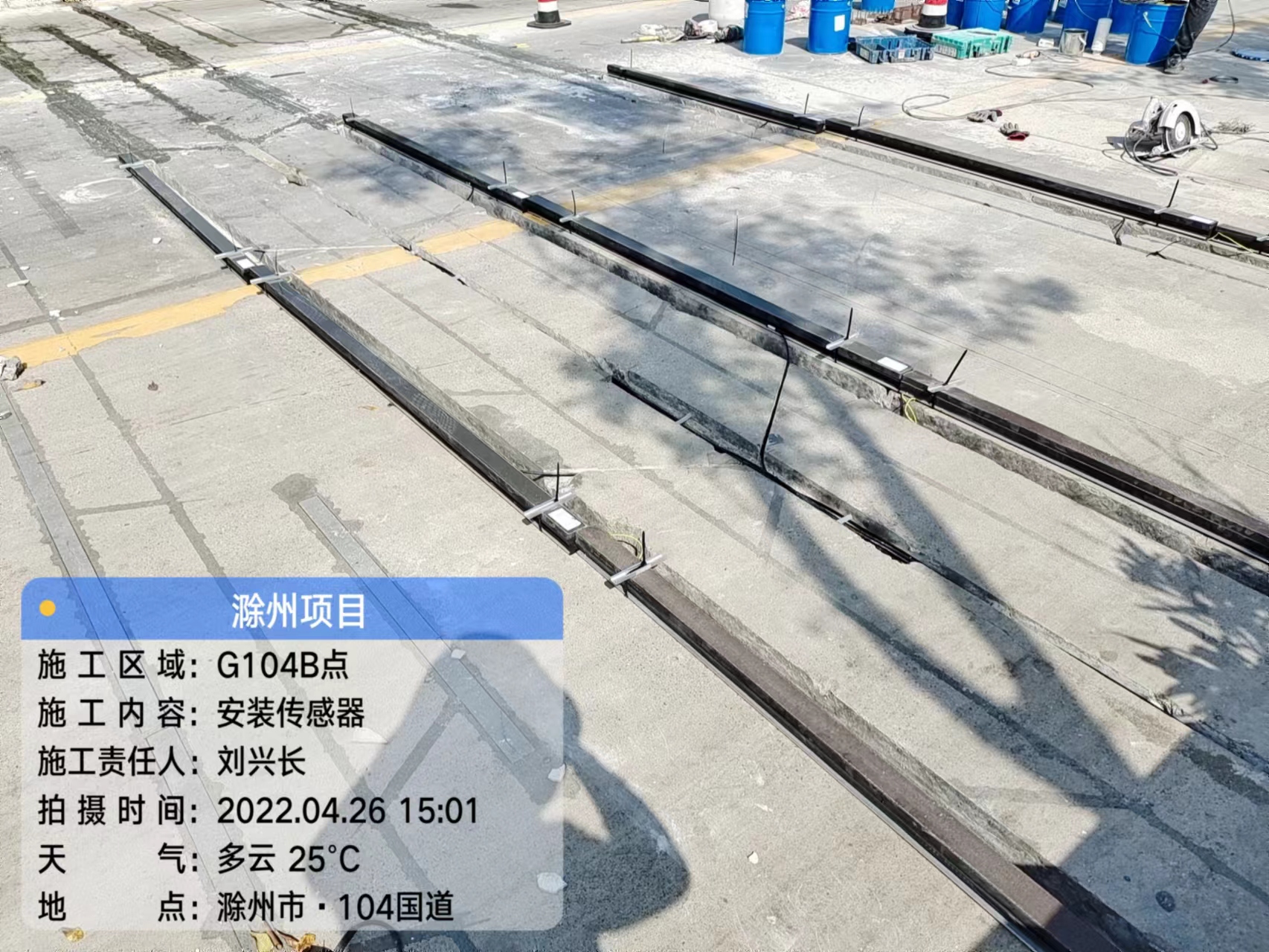

Project Case
