Overload Management WIM System 0.5-105km/H High Speed Weigh In Motion

Ask Lasest Price
Brand Name :	Hengliang
Model Number :	ZQS-40-SY
Certification :	ISO
Price :	USD 20000-35000/SET
Payment Terms :	T/T
Supply Ability :	30 SET/Month
Delivery Time :	5~7days

Add to Cart

Product Details
Company Profile

Overload Management WIM System 0.5-105km/H High Speed Weigh In Motion

Vehicle High Speed And High Precision Dynamic WIM System & Overload Management

Product Function

The high-speed dynamic overload control system includes high-definition monitoring system, vehicle identification system, dynamic weighing system, data acquisition system and data management system. When the vehicle passes through the pre inspection system, it realizes the whole process HD video monitoring, video recording, license plate recognition, axle weight, total axle weight and axle number. The data is automatically superimposed in the HD video picture, supports the front-end data cache, and uses the transmission network to transmit the data collected by the front-end to the central management platform.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

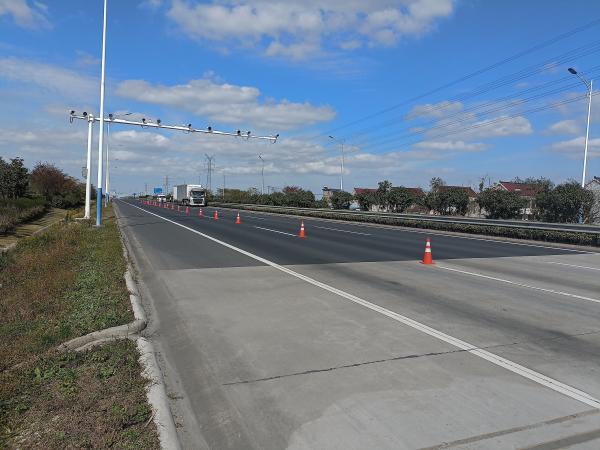

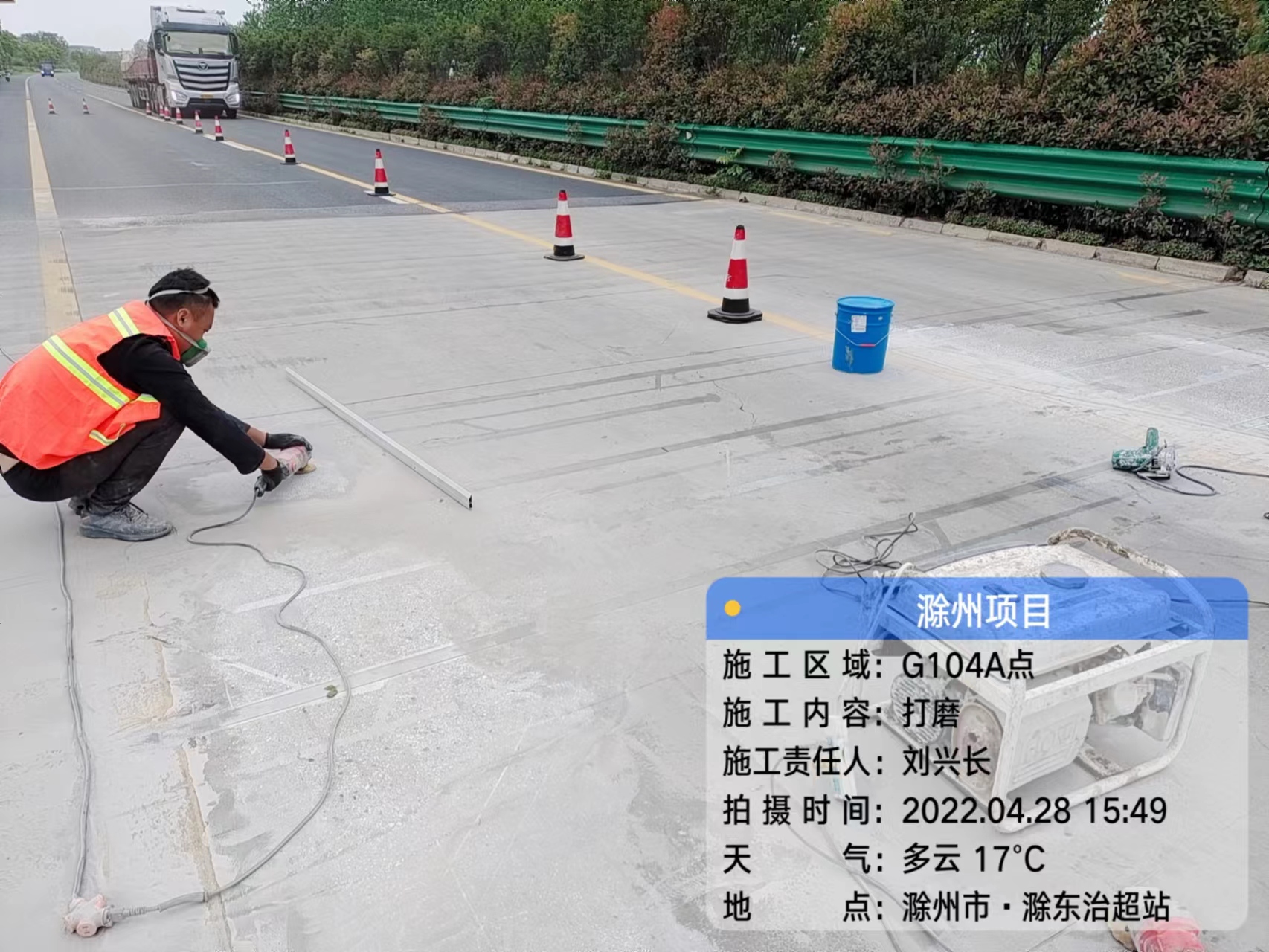

Project Case
