Highway Truck Weigh In Motion Axle Scale 40000kg Single Axle

Ask Lasest Price
Brand Name :	Hengliang
Model Number :	ZQS-40-SY
Certification :	ISO
Price :	USD 20000-35000/SET
Payment Terms :	T/T
Supply Ability :	30 SET/Month
Delivery Time :	5~7days

Add to Cart

Product Details
Company Profile

Highway Truck Weigh In Motion Axle Scale 40000kg Single Axle

Quartz Axle Load Weighing System For Highway Vehicles & 40000kg Single Axle

Product Function

The full-automatic detection point can automatically detect the overloaded vehicle and the following data of the vehicle at the same time:

Picture of the whole vehicle, close-up picture of the front face, license plate number, single axle load, number of axles, axle group weight, total vehicle weight, axle spacing, total wheelbase, vehicle length, vehicle speed, traffic flow, vehicle spacing, driving direction, model, time and date.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

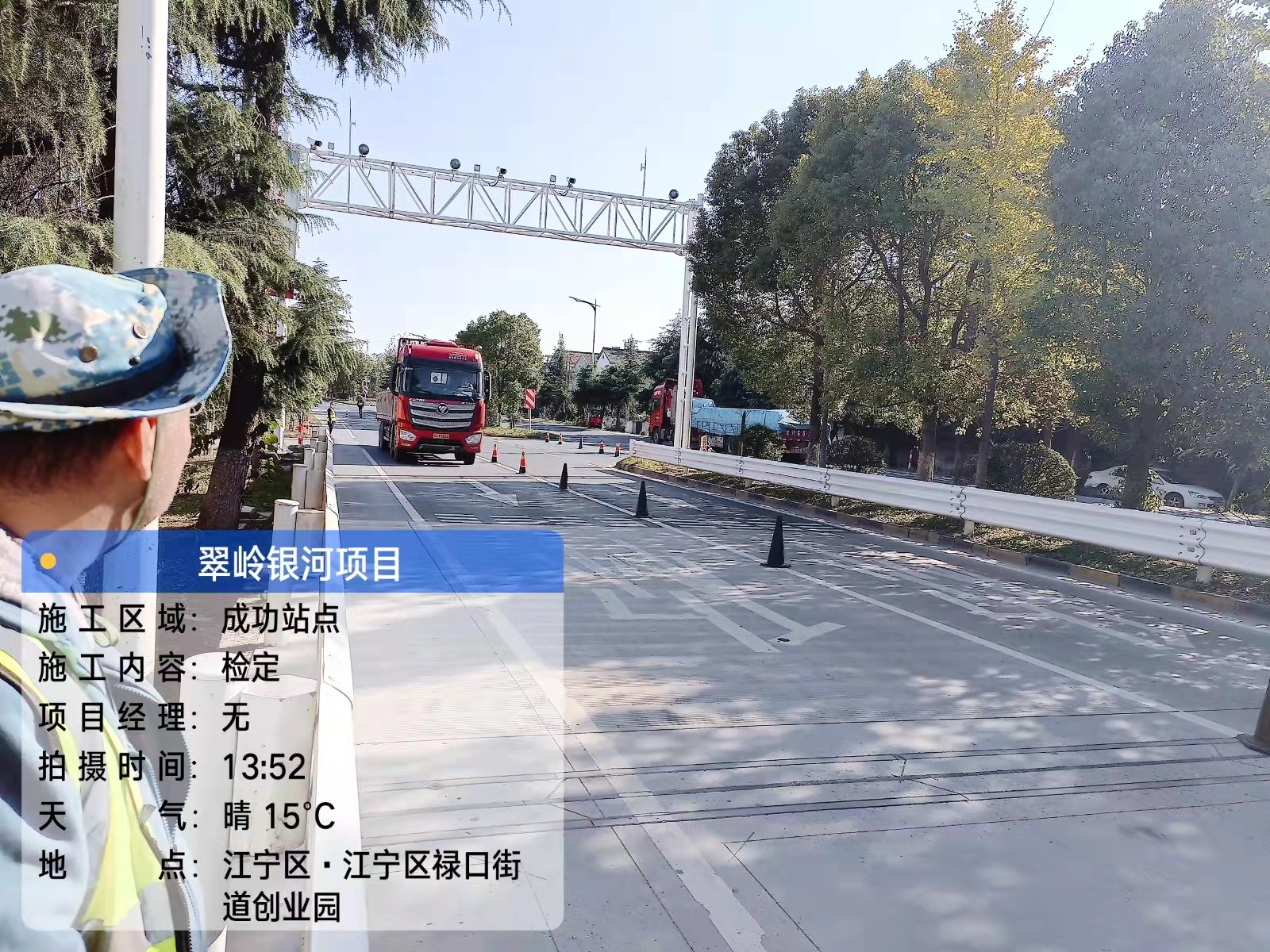

Project Case
