Hengliang Bridge Weigh In Motion Scales 8 lanes Truck Axle Scales

Ask Lasest Price
Brand Name :	Hengliang
Model Number :	ZQS-40-SY
Certification :	ISO
Price :	USD 20000-35000/SET
Payment Terms :	T/T
Supply Ability :	30 SET/Month
Delivery Time :	5~7days

Add to Cart

Product Details
Company Profile

Hengliang Bridge Weigh In Motion Scales 8 lanes Truck Axle Scales

0.5~105km/H High Speed Dynamic Bridge Protection System & WIM Scales

Product Function

The traffic load of highway and bridge is one of the key variables in the design and Performance Research of highway and bridge. The traffic load distribution of pavement and bridge is the key to understand the degradation of pavement and bridge and evaluate the design. Effectively obtaining traffic data including road and bridge loads is an important task of highway traffic investigation. The high-speed dynamic vehicle weighing system can detect the weight, speed, flow, spacing and vehicle type of running vehicles without affecting the normal traffic of roads and bridges.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

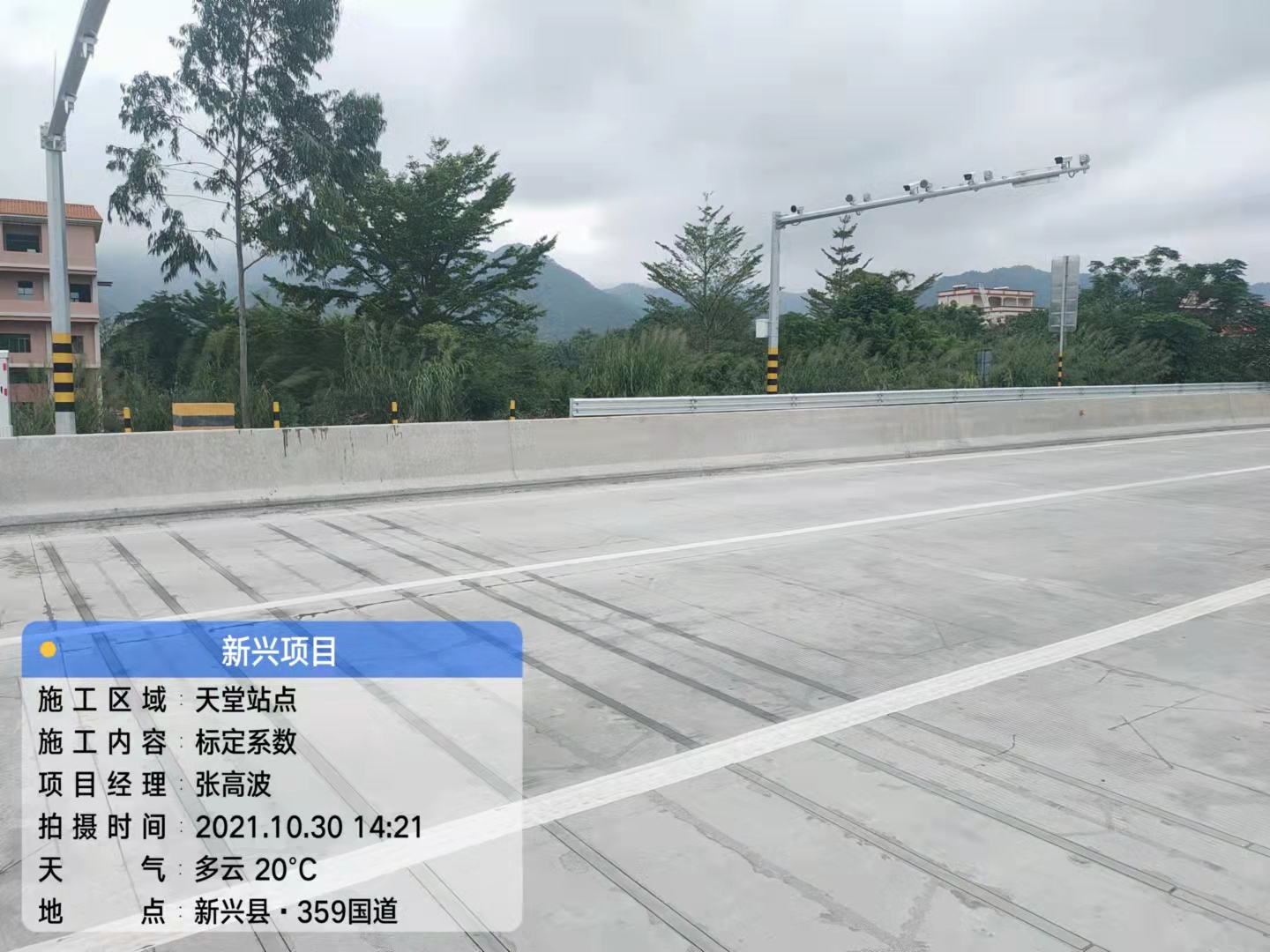

Project Case
