Platform Low Speed Weigh In Motion 0.5-40km/H Truck Axle Scales

Ask Lasest Price
Brand Name :	Hengliang
Model Number :	ZQS-40-SY
Certification :	ISO
Price :	USD 20000-35000/SET
Payment Terms :	T/T
Supply Ability :	30 SET/Month
Delivery Time :	5~7days

Add to Cart

Product Details
Company Profile

Platform Low Speed Weigh In Motion 0.5-40km/H Truck Axle Scales

Product Description

When the vehicle enters the weighing lane, the vehicle separator detects the arrival of the vehicle and generates a signal to inform the weighing controller to enter the weighing working state; When each axle of the vehicle is weighed by the quartz sensor in turn, the quartz sensor measures the load of each axle in real time and sends it to the weighing controller for recording; When the vehicle passes completely, the vehicle separator also generates a signal to inform the weighing controller to enter the data processing state; In the data processing state, the weighing controller accumulates the recorded axle load to calculate the total load of the vehicle, calculates whether the vehicle exceeds the limit and the specific number of exceeding the limit according to the detected vehicle type classification, and outputs the vehicle type classification, total load of the vehicle, vehicle limit value and other data.

Device Configuration (Low Speed WIM System)	Quartz Sensor
	Weight Meter(Low Speed)
	Weight Module(Low Speed)
	Charge Amplifier
	Wheel Identifier Sensor
	IR Vehicle Separator
	Electrical Cabinet(Optional)

Product Parameters

Weighing error	5%~10%
Single axle load	40Ton
Max Single Load	60Ton
Speed rate	0.5~40km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Power	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

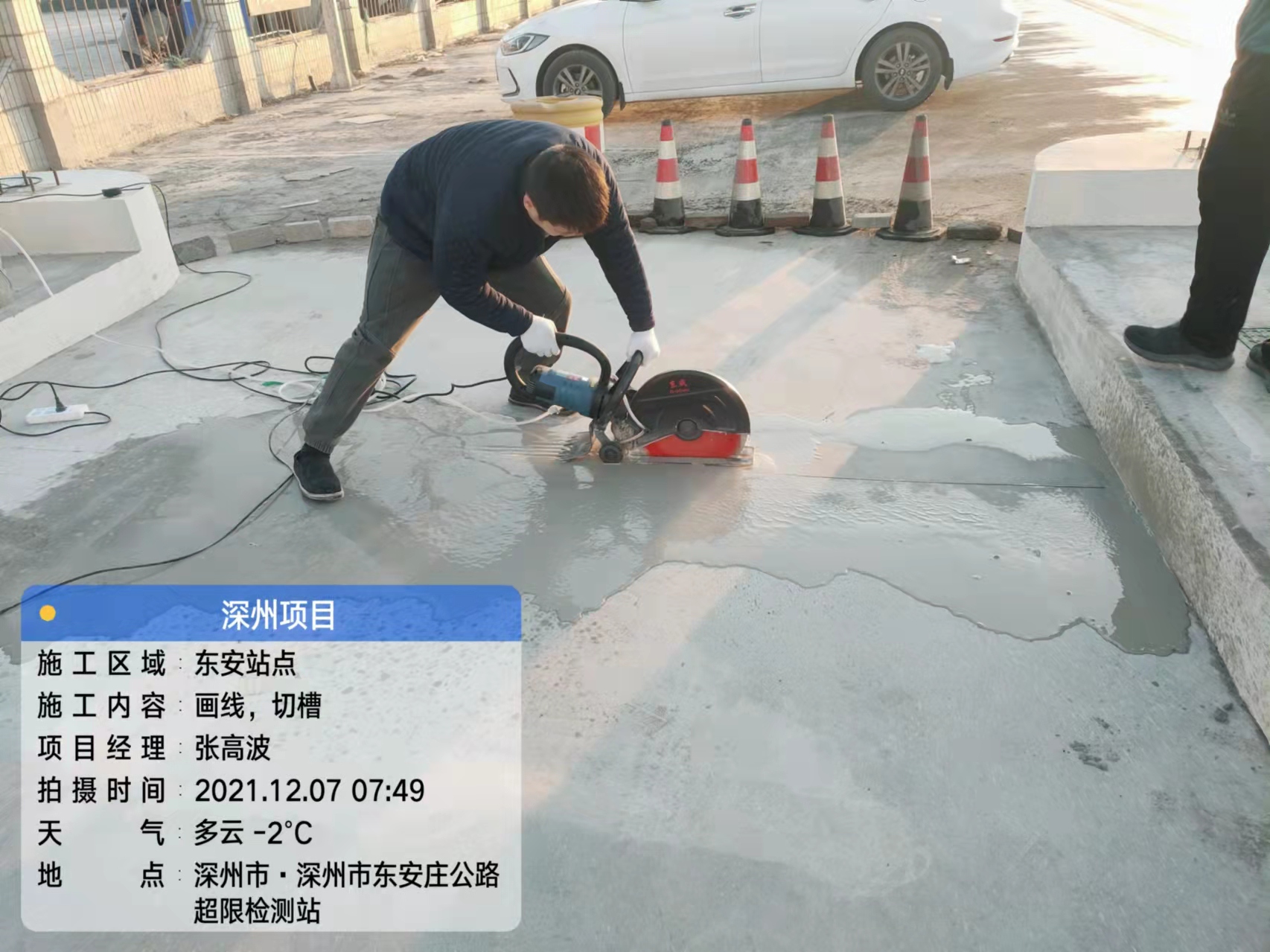

Project Cases
