Quartz High Speed Weigh In Motion System With High Waterproof Performance

Ask Lasest Price
Brand Name :	Hengliang
Model Number :	ZQS-40-SY
Certification :	ISO
Price :	USD 20000-35000/SET
Payment Terms :	T/T
Supply Ability :	30 SET/Month
Delivery Time :	5~7days

Add to Cart

Product Details
Company Profile

Quartz High Speed Weigh In Motion System With High Waterproof Performance

Quartz Weighing System With High Waterproof Performance & Speed Rate 0.5-105km/H

Product Description

1.Quartz Sensor:
Quartz sensor is a kind of sensor using quartz piezoelectric effect to measure weight.Quartz sensor is consists of a number of quartz ranged closely and assemble in aluminum alloy cabinet in accordance with certain layout.

2.License Plate Recognition Camera:
To recognition of vehicle license plate

3.IPC:
A computer CPU, hard disk, internal memory, peripherals and interfaces, and with operating systems, control networks and protocols, computing power, friend interface

4.Charge Amplifier:
It collects charge of quartz weighing sensor and converted to voltage signal.

5.Weighing meter:
It analyzes charge amplifier input signal, and concludes axle, wheelbase,
axle speed, vehicle model, gross weight and other information.

6.Outdoor electrical cabinet:
With rain proof, shockproof, dustproof, antitheft and other functions, can effectively protect the safety of the outdoor electrical
equipment.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

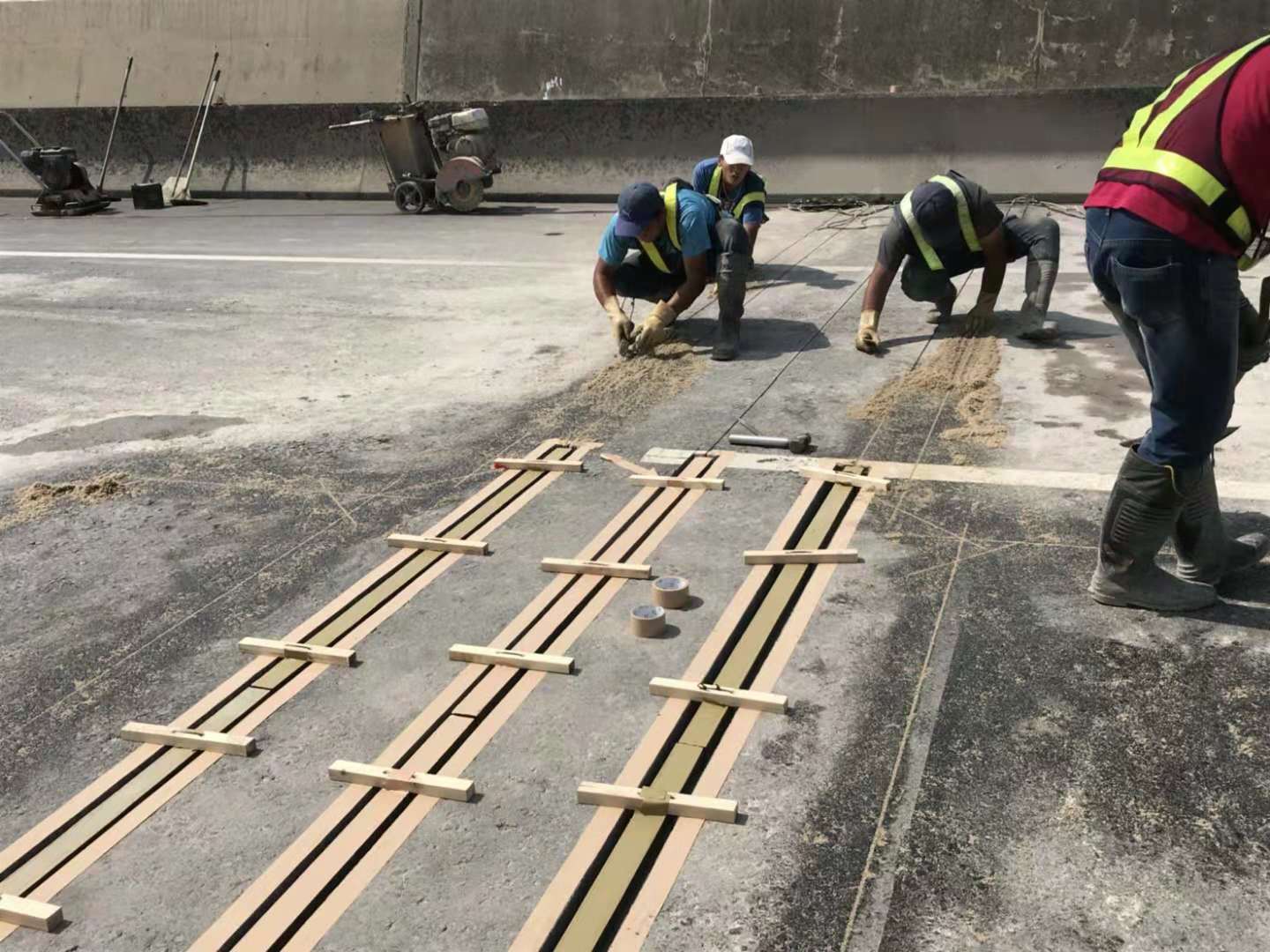

Project Case
