0.5-105km/H Speed Road Overrun Management System & In Motion Axle Scales

Product Description

Road surface selection:The weighing area should not be set up in traffic congestion sections, bends, and cross slope relatively large sections; the mounting position of the front from the traffic light area not less than 600 meters, the distance behind the traffic light area not less than 200 meters; in general, lane longitudinal slope is less than 3%, cross slope is less than 2%.
Pavement better for concrete surface, concrete mark not less than C40; (C40 means the cube compressive strength standard value of 40N/mm2)

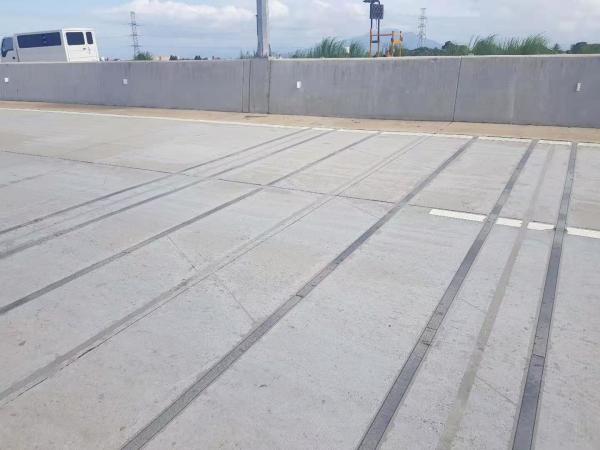

Total length of the construction site is no less than 35 meters, the weighing area flatness error is less than ±3mm, so as to avoid the rough surface which may cause the vehicle bump from influencing the weighing accuracy, individual regional distribution as shown in the figure:

After the completion of the construction, the road surface should be flat without concave and convex defects and weighing area flatness error is less than ±3mm.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

Project Case
