CE And ISO Certified High Speed WIM System Weigh In Motion Truck Scales

Ask Lasest Price
Brand Name :	Hengliang
Model Number :	ZQS-40-SY
Certification :	ISO
Price :	USD 20000-35000/SET
Payment Terms :	T/T
Supply Ability :	30 SET/Month
Delivery Time :	5~7days

Add to Cart

Product Details
Company Profile

CE And ISO Certified High Speed WIM System Weigh In Motion Truck Scales

CE And ISO Certified In Motion Weighing System, High Speed WIM System

Product Description

When the vehicle enters the weighing lane, the vehicle separator detects the arrival of the vehicle and generates a signal to notify the weighing controller to enter the weighing state: when the quartz sensor weighs each axle of the vehicle in turn, it measures the load of each axle in real time and sends it to the weighing controller for recording; When the vehicle passes through completely, the vehicle separator generates a signal to notify the weighing controller to enter the data processing state; In the data processing state, the weighing controller accumulates the recorded axle weight, calculates the total load of the vehicle, calculates whether the vehicle is out of limit and the physical education of the out of limit according to the detected vehicle type, and outputs the vehicle type score, total load and limit value.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

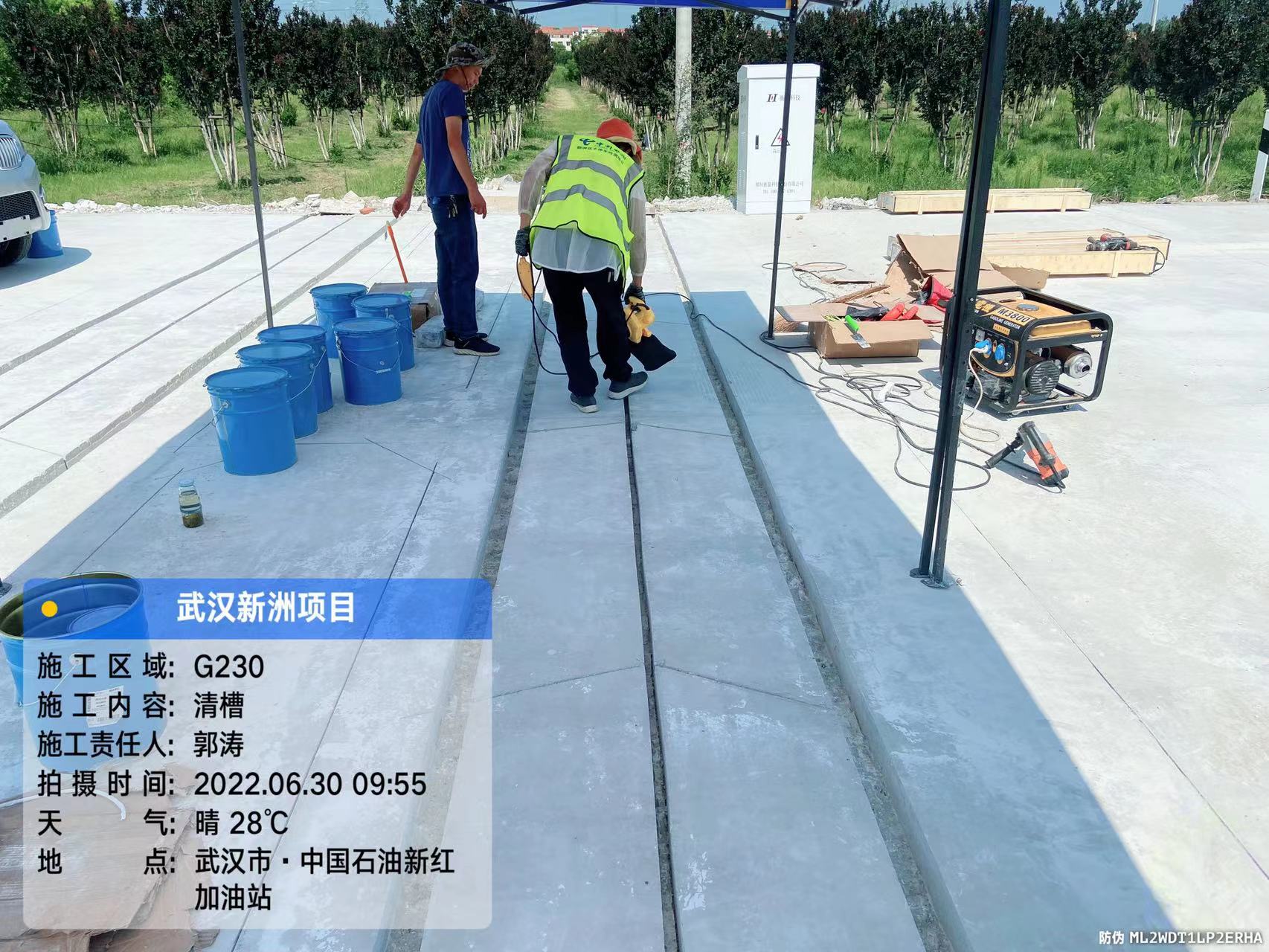

Project Case
