Real-time display of vehicle weighing information, vehicle serial number, license plate color, license plate number, gross weight, weight limit, number of axles, lane, direction, speed, and more.

Click the vehicle's front photo to preview the information;

Double-click the vehicle list to display detailed information;

Automatically calculate and output over-limit data, supporting separate column displays of over-limit data;

Supports automatic on-screen protection;

Real-time display of operating status for easy fault diagnosis and query;

Automatically identify abnormal data with confidence level detection and display.

Supports viewing and adjusting the weighing equipment's station name, type, communication method, serial port, instrument IP address, data bits, and baud rate.

Supports cyclical storage of industrial computer images and automatic deletion of expired images.

Supports enabling interface devices.

Supports filtering of vehicle display based on license plates and photos.

Supports pre-transmission of overweight vehicle data (only available in the Comprehensive Overweight Control Platform V2.0).

Supports snapshot control and reception of cameras from major camera manufacturers.

Supports the addition, deletion, modification, and query of snapshot device parameters, including station name, camera category, camera name, camera type, IP address, port number, username, password, and deployment level.

Supports camera enable status control and modification time recording.

Supports continuous front-end photography for capturing moving images.

Supports snapshots of information boards, with comprehensive matching and synthesis.

Supports snapshot control using entry and exit signals and customizable delays.

The information board supports viewing, adjusting, and adding station names, screen names, control cards, orientation, screen height, and screen width. Information board content can be configured and data edited.

Over-limit notifications, warnings, and under-limit notifications can be customized, along with promotional content and display time.

Vehicle images can be displayed on the full-color large screen.

Multiple information boards in the same lane can be displayed.

Supports combining and matching exterior dimension data with license plate and weight data.

Supports interface protocol analysis for mainstream exterior dimension measurement equipment manufacturers.

Supports configuration of exterior dimension measurement equipment for different installation layouts.

Supports combined matching of ETC license plates, captured license plates, and weight data;

Supports interface protocol parsing for major ETC equipment manufacturers;

Supports vehicle configuration based on ETC coordinates;

Supports ETC detection and control using various trigger sources;

Supports configuring overweight standards for different vehicle models based on different countries and regions.

Supports setting a minimum weight for non-overweight vehicles on the information board.

Supports setting a minimum overweight rate for overweight vehicles on the information board.

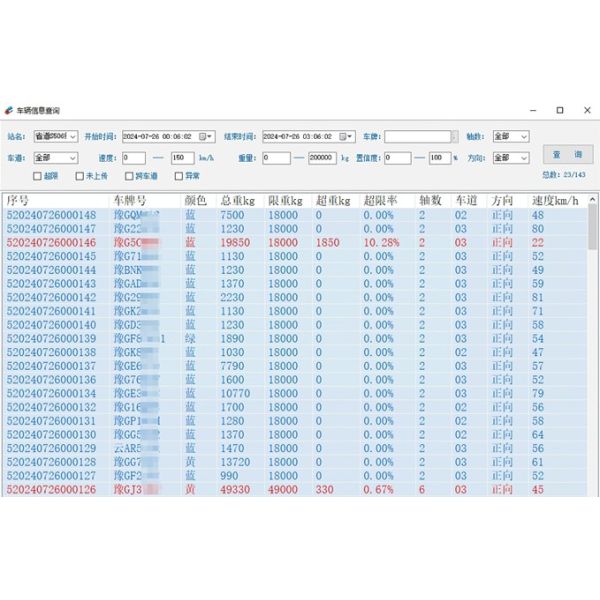

Supports queries based on lane, license plate, number of axles, weight range, speed range, confidence rate range, and other criteria within a specified timeframe.

Supports fuzzy queries based on incomplete license plate numbers;

Supports queries based on unusual data features such as lane crossings.
